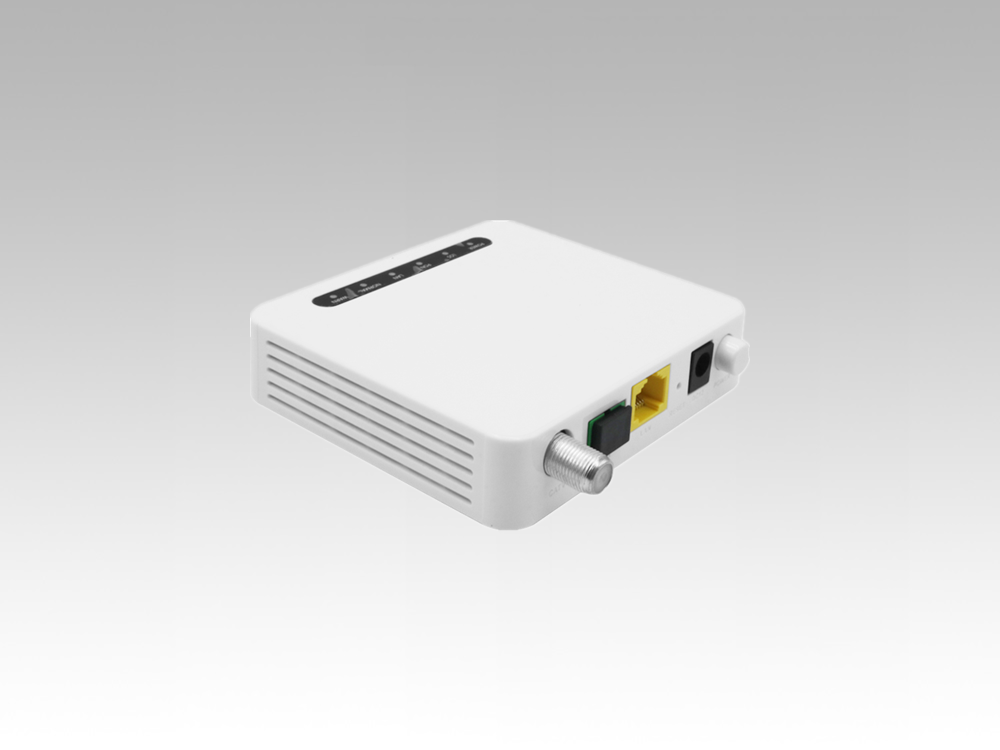

1GE+CATV (GP8100-C)
1GE+CATV (GP8100-C)
- 1GE+CATV is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access.
- 1GE+CATV is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
- 1GE+CATV adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
- 1GE+CATV is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
- 1GE+CATV is designed by Realtek chipset 9601D
-
Feature
- Supports Dual Mode (can access GPON/EPON OLT).
- Supports SFU and HGU of EPON CTC 3.0 standard
- Supports GPON G.984/G.988 standards
- Support CATV interface for Video Service and remote control by Major OLT
- Support NAT, Firewall function.
- Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
- Support port mode of VLAN configuration
- Support LAN IP and DHCP Server configuration
- Support WEB Management
- Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
- Support IPv4/IPv6 dual stack
- Support IGMP transparent/snooping/proxy
- In compliant with IEEE802.3ah standard
- Compatible with popular OLT (HW, ZTE, FiberHome...)
-
Technical Item Details PON interface 1 GPON/EPON port(EPON PX20+ and GPON Class B+)
Upstream: 1310nm, Downstream: 1490nm
SC/APC connector
Receiving sensitivity: ≤-27dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KMLAN interface 10/100/1000Mbps auto adaptive Ethernet interfaces.
10/100/1000M Full/Half, RJ45 connectorCATV Interface RF, optical power : +2~-18dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: ≥ 82dBuV（-7dBm optical input）
AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm
MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)LED 6 LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN Push-Button 2, for Function of Power on/off, Reset Operating condition Temperature : 0℃～50℃
Humidity :10%～90%（non-condensing）Storing Condition Temperature : -40℃～+60℃
Humidity :10%～90%（non-condensing）Power supply DC 12V/1A Power Consumption <3W Net Weight <0.2kg
-
