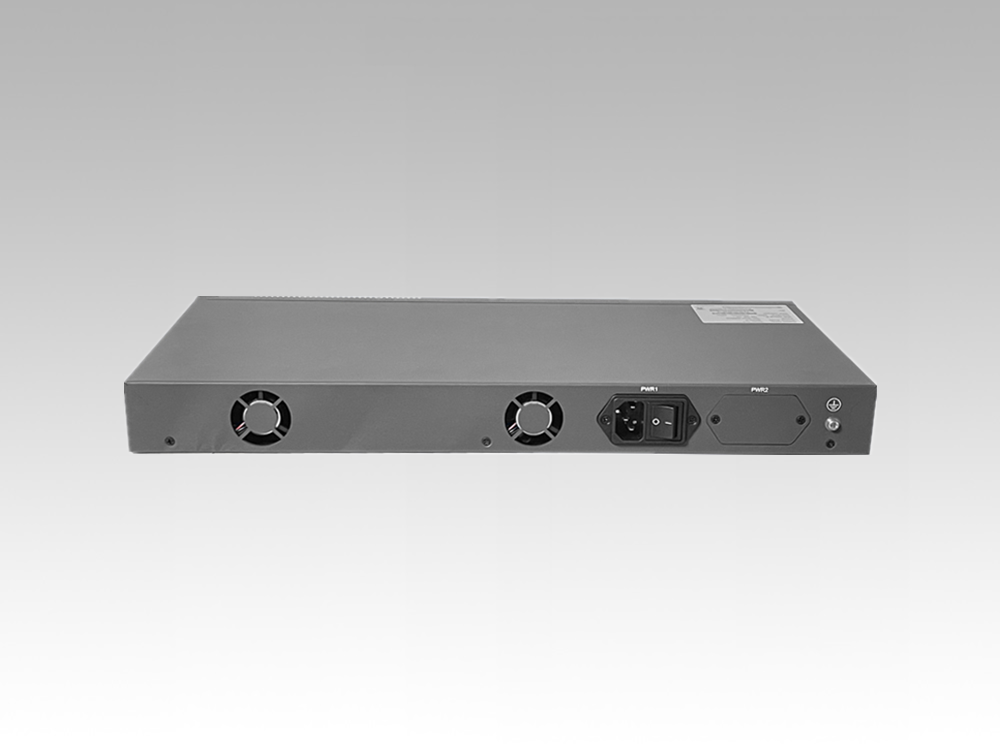

4 PON PORT EPON WEB 10G OLT
4 PON PORT EPON WEB 10G OLT
E9004-BT is a small scale office end 10G OLT device of FTTX telecommunication level independently researched and developed by SmartFiber Company; it conforms to IEEE802.3-2005 standard and the technical requirement V2.1 specification for EPON device of China Telecom; it can provide user with access to comprehensive services such as broadband, voice, IPTV and CATV.
-
• High density flexible networking
>Up to 4 PON ports can be supported in the complete machine
• Highly reliable case strong adaptive capacity to environment
>1U case modular design all modules can be hot plugged and online update is supported
>Good shielding measures.
• layer 2 aggregation switching
>layer 2 wire-speed forwarding; support rich layer 2 protocols、16K MAC address list
>4 uplink SFP ports 4 uplink GE ports. support up to 8G uplink bandwidth via port aggregation function
>Uplink port supports electronic port modules and optical port modules which can be configured flexibly as required
• Perfect network management function
>Support GUI based graphical interface and WEB interface management
>Support in-band management out-of-band management
>Support online upgrade of device software
• Strong QOS function
>Support flexible DBA uplink and downlink traffic rate-limited
>Support IP ToS IEEE802.1p
>Port based traffic control traffic shaping
• Rich OAM function
>Support ONU automatic identification automatic finding and automatic registration
>Support the function of automatic loop back test to single link
>Strong VLAN function including VLAN Stacking Trunk Translation flexible QINQ
>Support flexible controllable multicasting support IGMP snooping -
Item E9004-BT Switching capacity 108Gbps Throughput(IPv4/IPv6) 80Mpps Service port 4/8*PON，4*GE ，4*10GE SFP Redundancy design Dual power supply support AC input、dual DC input and AC+DC input Power supply AC：90～240V，47～63Hz ；
DC：-36V～-72V；Power consumption ≤30W Outline dimensions
(mm) (W*D*H)442mm×44mm×260mm Weight (in maximum configuration) ≤5kg Environmental
parameterWorking temperature：0°C～50°C
Storage temperature：-20°C～70°C
Relative humidity：10%～90%，no condensing
Purchase Information:
Product name Product description E9004-B Cassette OLT (4 downlink 1000M PON ports 4 uplink GE ports4 uplink 1GE SFP ports) E9004-BT Cassette OLT (4 downlink 1000M PON ports 4 uplink GE ports4 uplink 10GE ports) E9008-B Cassette OLT (8 downlink 1000M PON ports 4 uplink GE ports4 uplink 1GE SFP ports) E9008-BT Cassette OLT (8 downlink 1000M PON ports 4 uplink GE ports4 uplink 10GE ports)
-
Item E9004-BT PON features
IEEE 802.3ah EPON
China telecom/Unicom GEPON standard
20Km for single fibber
Access 64 terminals for single fiber PON
Uplink and downlink triple churning encrypted function
ONU terminal legitimacy certification report illegal ONU registration
DBA algorithm
Standard OAM and extended OAM
ONU batch software upgrade fixed time upgrade real time upgrade
PON transmit and inspect receiving optical powerL2 features MAC MAC Black Hole
Port MAC Limit
16K MAC addressVLAN 4K VLAN entries
Port-based/MAC-based/IP subnet-based VLAN
Port-based QinQ and Selective QinQ (StackVLAN)
VLAN Swap and VLAN Remark and VLAN Translate
GVRP
based on ONU service flow VLAN add delete replaceSpanning tree protocol IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP)
ONU remote loop detecting alarmPort Bi-directional bandwidth control
Static link aggregation and LACP(link Aggregation Control Protocol)
Port mirroring and traffic mirroringSecurity features User security Anti-ARP-spoofing
Anti-ARP-flooding
IP Source Guard create IP+VLAN+MAC+Port binding
Port Isolation
MAC address binds to port and port MAC address filtration
IEEE 802.1x and AAA/Radius authenticationDevice security Anti-DOS attack(such as ARP，Synflood Smurf ICMP attack) ARP detection worm and Msblaster worm attack
SSHv2 Secure Shell
SNMP v3 encrypted management
Security IP login through Telnet
Hierarchical management and password protection of usersNetwork security User-based MAC and ARP traffic examination
Restrict ARP traffic of each user and force-out user with abnormal ARP traffic
Dynamic ARP table-based binding
Supports IP+VLAN+MAC+Port binding
L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet
Port-based broadcast/multicast suppression and auto-shutdown risk port
URPF to prevent IP address counterfeit and attack
DHCP Option82 and PPPoE+ upload user’s physical location
Plaintext authentication of OSPF、RIPv2 and BGPv4 packets and MD5 cryptograph authenticationService features ACL Standard and extended ACL
Time Range ACL
Packet filter providing filtering based on source/destination MAC address source/destination IP address port protocol VLAN VLAN range MAC address range or invalid frame. System supports concurrent identification at most 50 service traffic
Support packet filtration of L2～L7 even deep to 80 bytes of IP packet headQoS Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow
Priority remark to port or self-defined flow and provide 802.1P DSCP priority and Remark
CAR(Committed Access Rate)、Traffic Shaping and flow statistics
Packet mirror and redirection of interface and self-defined flow
Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP WRR and SP+WRR.
Congestion avoid mechanism，including Tail-Drop and WREDIPv6 SA/DA Classification MLD Snooping Multicast IGMPv1/v2/v3
IGMPv1/v2/v3 Snooping
IGMP Filter
MVR and cross VLAN multicast copy
IGMP Fast leave
IGMP Proxy
PIM-SM/PIM-DM/PIM-SSM
PIM-SMv6、PIM-DMv6、PIM-SSMv6
MLDv2/MLDv2 SnoopingReliability Loop protection EAPS and GERP (recover-time <50ms)
Loopback-detectionlink protection Flexlink (recover-time <50ms)
RSTP/MSTP (recover-time <1s)
LACP (recover-time <10ms)
BFDDevice protection VRRP host backup
Double fault-tolerant backup of host program and configuration files
PON card/fan hot-swappable
1+1 power hot backupRouting features ARP Support static ARP;
Support dynamic ARP;
Support for ARP proxiesIPV4/6 Support static routing;
Support black hole routingMaintenance Network maintenance Telnet-based statistics
RFC3176 sFlow
LLDP
802.3ah Ethernet OAM
RFC 3164 BSD syslog Protocol
Ping and TracerouteDevice management Command-line interface（CLI） Console Telnet and WEB configuration
System configuration with SNMPv1/v2/v3
RMON (Remote Monitoring)1/2/3/9 groups of MIB
NTP(Network Time Protocol)
